Side-Shaft
Torque System

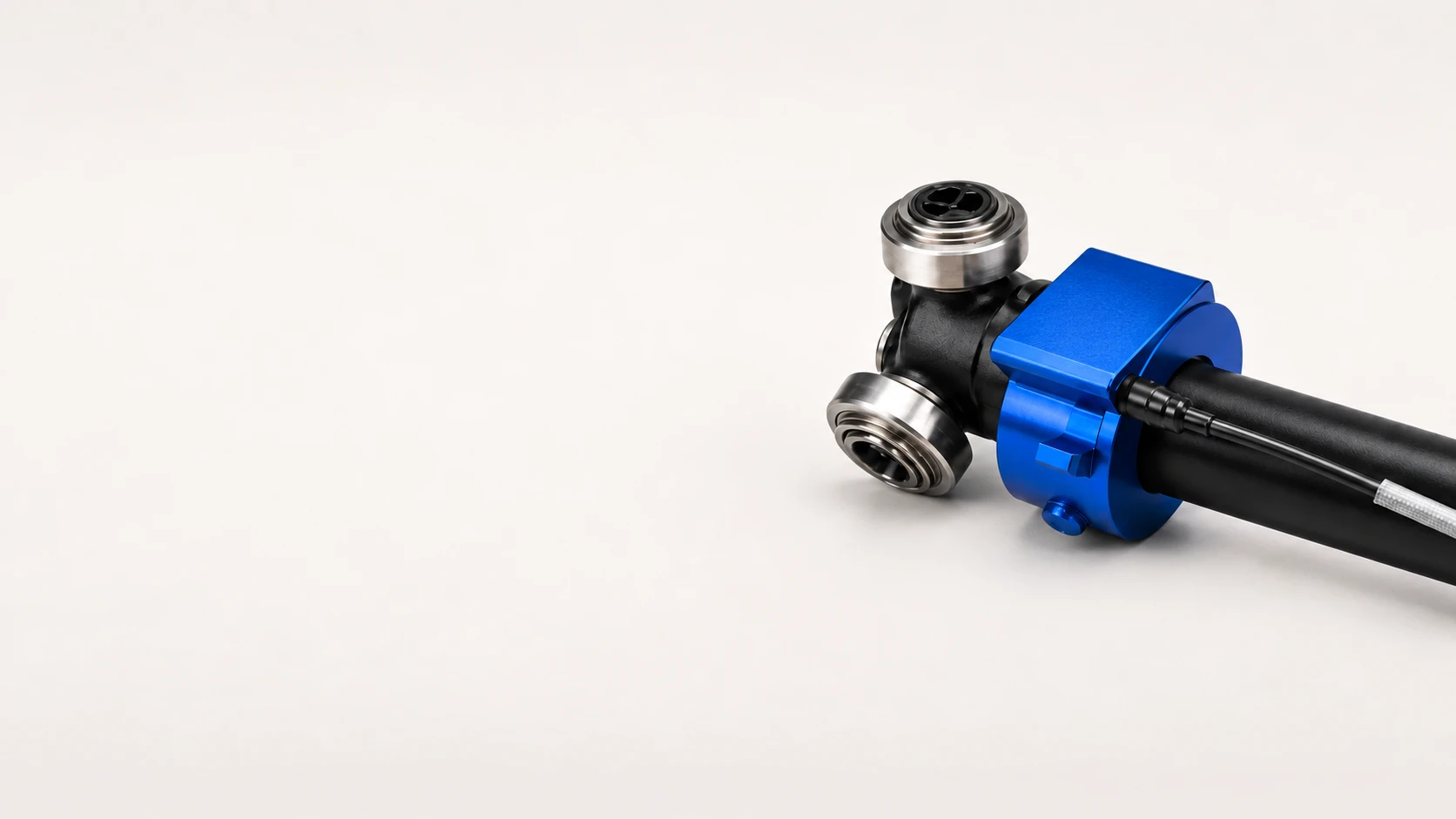

The Melectric Side-Shaft torque measuring system is a high-precision answer to real-time torque measurement on propshafts in motorsport and the automotive industry.
It was developed for applications that need a compact build, high measuring accuracy and rugged construction.
The driveshaft itself becomes the sensor, up to ±5,500 Nm, with no intermediate component.
The Melectric Side-Shaft torque measuring system is a high-precision answer to real-time torque measurement on propshafts in motorsport and the automotive industry. It was developed specifically for applications that need a compact build, high measuring accuracy and rugged construction.
Unlike other systems, this one needs no separate amplifier, because the signal processing is already fully integrated. That takes up less room and makes installation easier.
Measurement data from the driveshaft
| Feature | Value |
|---|---|
| Measuring range | ±5,500 Nm, or adjustable to the customer |
| Outputs | CAN bus and analogue |
| Signal bandwidth | Standard 1 kHz, optionally up to 10 kHz |
| Temperature range | −40 to 125 °C |
Measuring position
Typical measuring tasks solved with this series. The list is not exhaustive.
Motorsport & high-performance vehicles:
- Live data analysis while driving
- Tuning limited-slip differentials and traction control
- Aero efficiency testing (coast-down, straight-line runs)
Automotive industry & research:
- Developing new driveline concepts
- Testing clutch systems and transmission controls
- Simulating and calibrating torque vectoring systems
What measuring directly on the shaft gives you
Integrated signal processing
No external amplifier needed
Rugged design
Built for the extremes of motorsport
Compact construction
Direct integration on driveshafts
Technical enquiry about your application.
Torque range, speed, installation space and ambient conditions are enough for a first design proposal.
