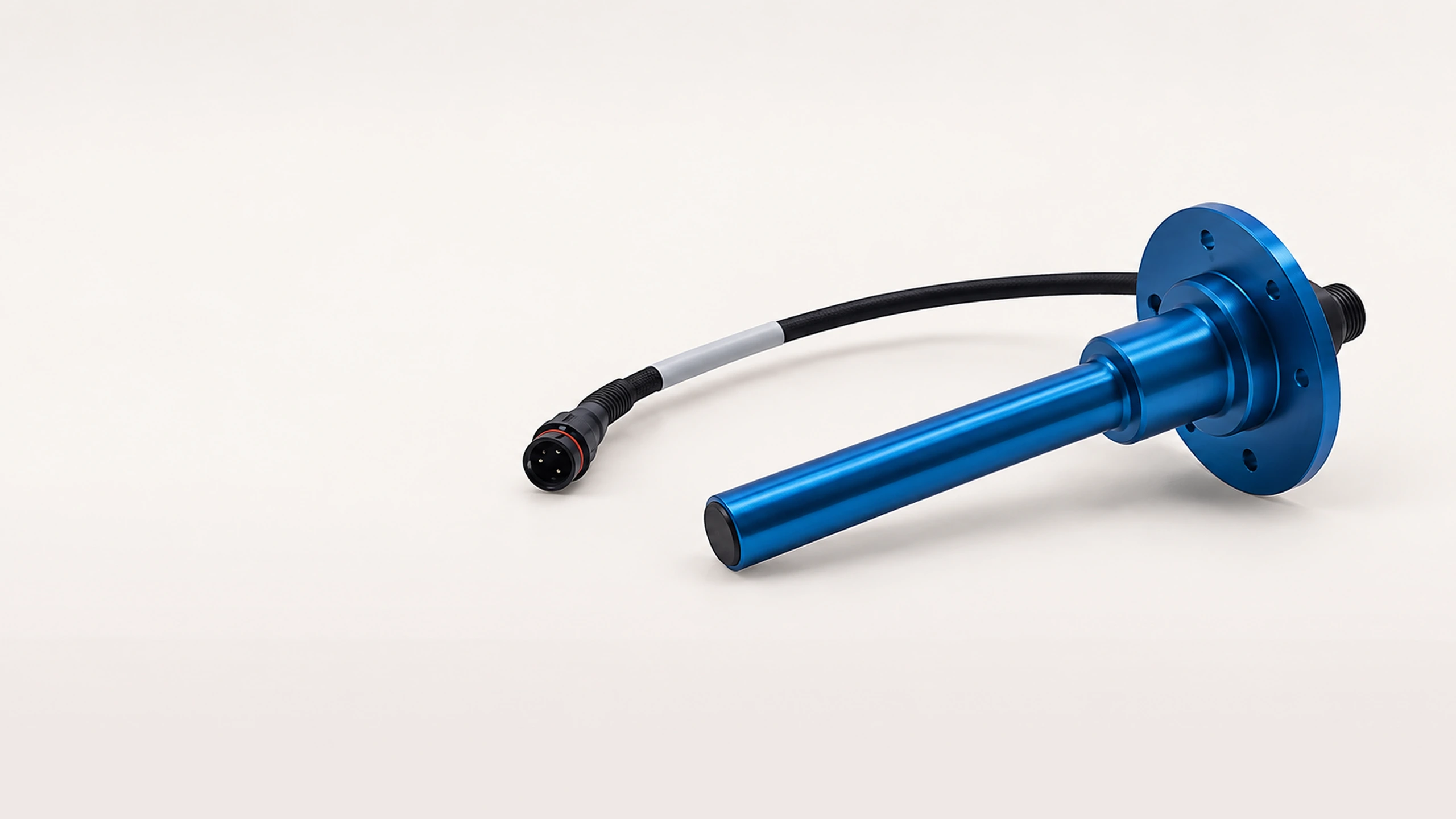

Torque sensors for hollow shafts
Torque sensing inside the hollow shaft, with no external housing and no added length.
The measuring point moves inside the hollow shaft. Outside, the installation space stays as it was.
Torque measurement in hollow shafts: compact, dependable sensor technology
Melectric sensors measure torque directly in the rotating axis of a shaft, through a suitably placed bore, taking up almost no room and losing none of the precision. Excellent signal stability and IP69K protection suit them to industry, agricultural machinery and automotive and motorsport applications.
Measurement data from inside the hollow shaft
| Feature | Value |
|---|---|
| High overload capability | for demanding applications |
| Measuring ranges adjustable to the application | beyond ±5,000 Nm |
| High IP rating | up to IP69K for use in harsh environments |
| Temperature range | −40 to 125 °C (optionally −40 to 160 °C) |
| Space-saving integration | directly inside hollow shafts, with no external housing |
Integration where space is limited
Typical measuring tasks solved with this series. The list is not exhaustive.
Agricultural machinery & motorsport
- Monitoring drivelines in machines and robots
- Torque control in pumps, gearboxes and rolling mills
- Measuring loads in harvesting machinery
Industry & aerospace
- Checking torque transfer in hydraulic systems
- Precise measurement of driveshaft load in electric and hybrid vehicles
- Optimising force transfer in motorsport applications
What measuring from inside gives you
Compact integration
Made for applications where space is limited
Rugged construction
Suited to extreme loads and harsh environments
Matched to the installation
Adaptable to different shaft diameters and interfaces
Technical enquiry about your application.
Torque range, speed, installation space and ambient conditions are enough for a first design proposal.
