High-precision torque flanges
Factory-calibrated torque flanges for test bench, production and development.
Torque flanges for the highest precision on test benches.

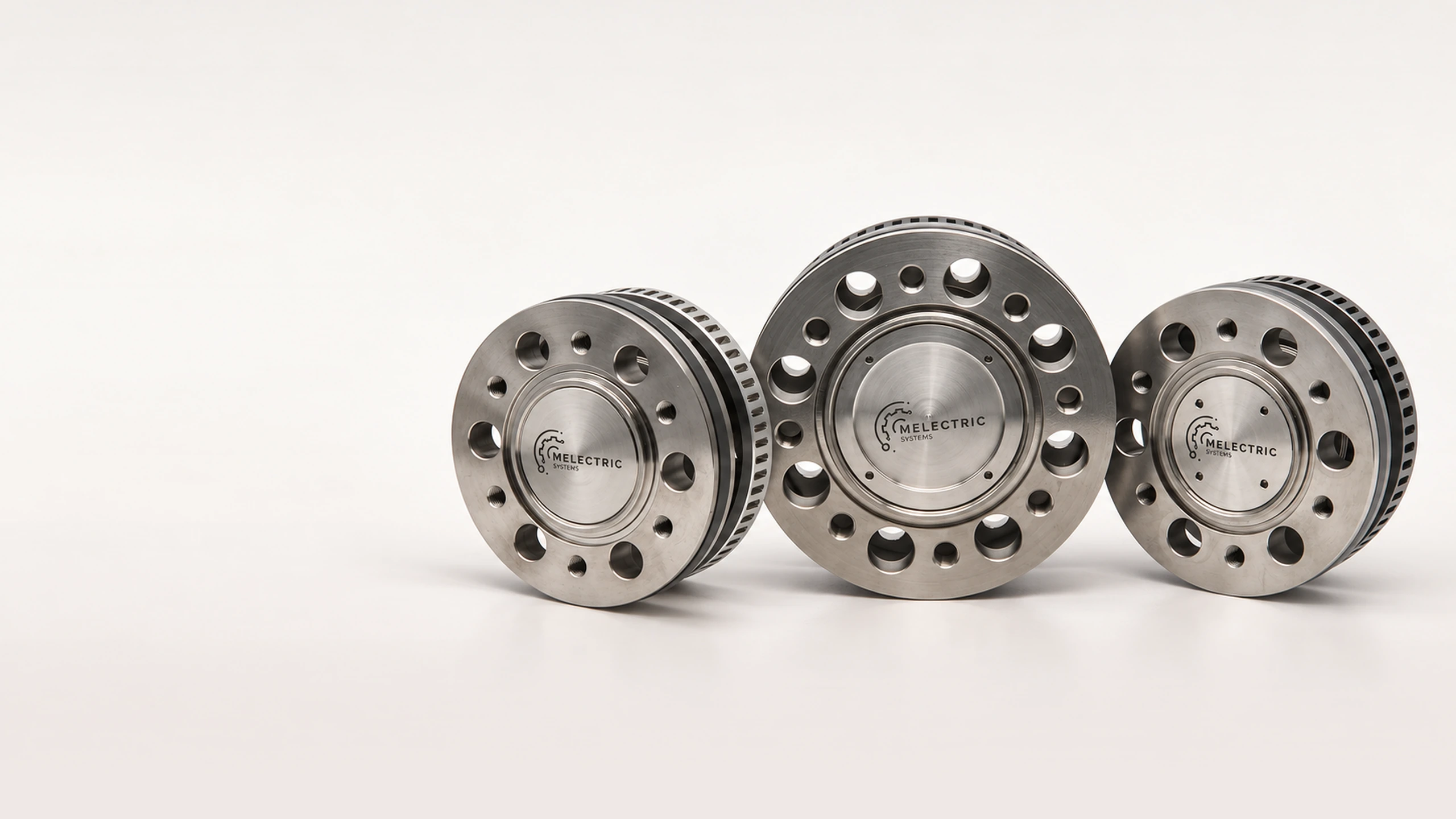

The ME-FS torque flange is a thoroughly modern solution for precise, dependable torque measurement in demanding applications. Its wide measuring range and high speed capability suit it to a range of industries, among them vehicle testing, industrial machinery and research and development projects.
The flange ships factory-calibrated and carries an integrated, advanced signal processing unit that delivers consistent, highly accurate results. Its compact build and compatibility with several output signals make it a versatile addition to any measuring environment.
Factory calibration and documentation
| Feature | Value |
|---|---|
| High speed capability | Rotational speed and speed measurement up to 15,000 rpm |
| Outputs | Analogue ±5 V, ±10 V or 4–20 mA |
| Accuracy | Accuracy of 0.05 % FS nominal |
| Compact construction | Axial length from 51 mm |
| Equipment | Integrated speed measurement |
Installation position
Typical measuring tasks solved with this series. The list is not exhaustive.
Automotive & industry
- Vehicle testing: torque measurement on engine and drive components
- Monitoring torque on test benches
- Real-time capture of load and power data
Research & laboratory
- Measuring accuracy for laboratory tests in research and development
- A dependable, repeatable solution for dynamic load conditions
- High-accuracy power measurement and efficiency determination

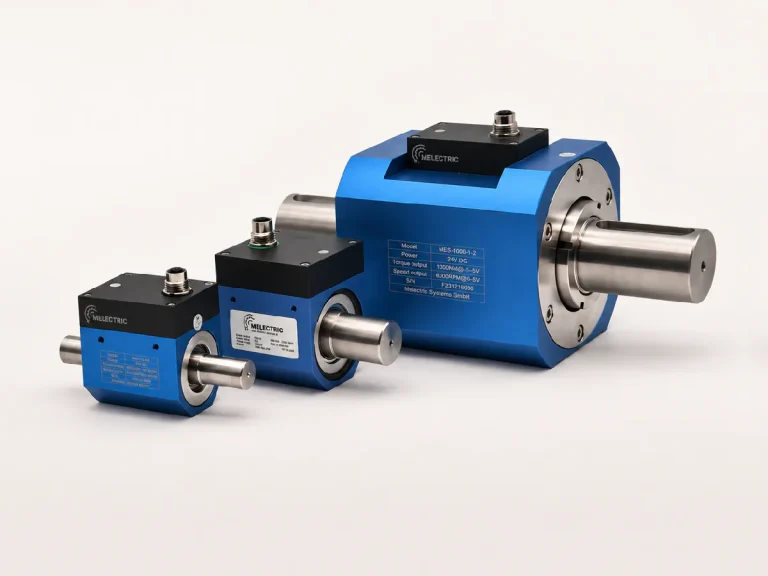

Choosing between torque flange and torque shaft
Measuring accuracy
Delivers extremely accurate torque measurement
Rugged construction
Built for demanding applications and high speeds
Support & servicing
Annual recalibration services available from Melectric Systems GmbH
Technical enquiry about your application.
Torque range, speed, installation space and ambient conditions are enough for a first design proposal.
